LEADLIFE offers a range of highly automated tablet presses, from single punch models—ideal for small-scale use to rotary models designed for industrial production, with a variety of punch options to meet diverse production needs. Equipped with automatic feeding, tablet ejection, and dust removal systems, our machines ensure tablets remain free from contaminants. They produce thousands of tablets per hour, handling various formulations and shapes with precision. Advanced technology ensures accurate dosing, maintains product purity, and meets the highest safety and quality standards.
Introduction

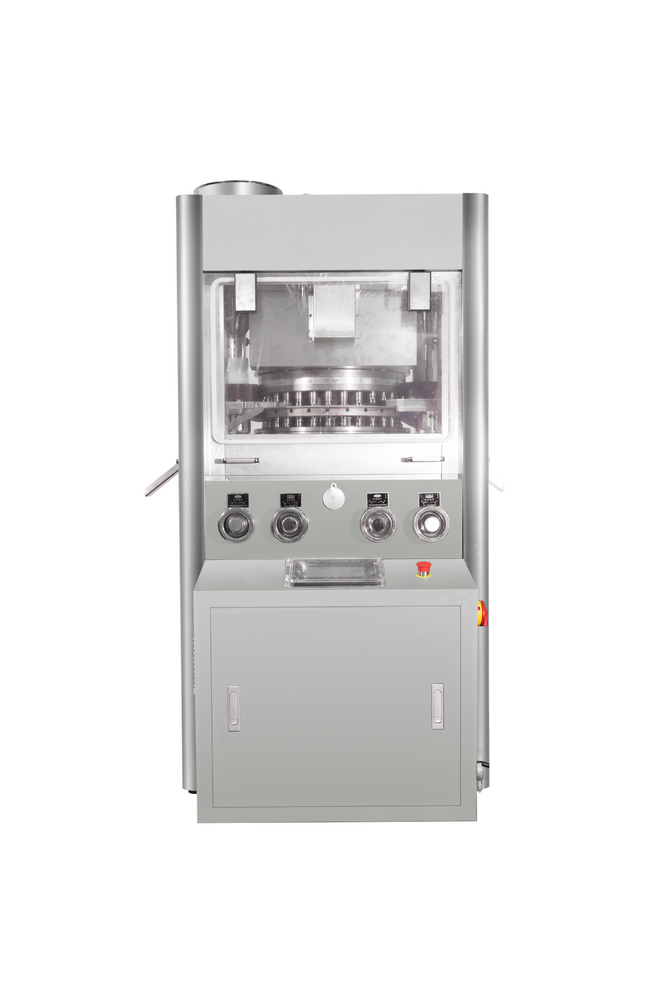

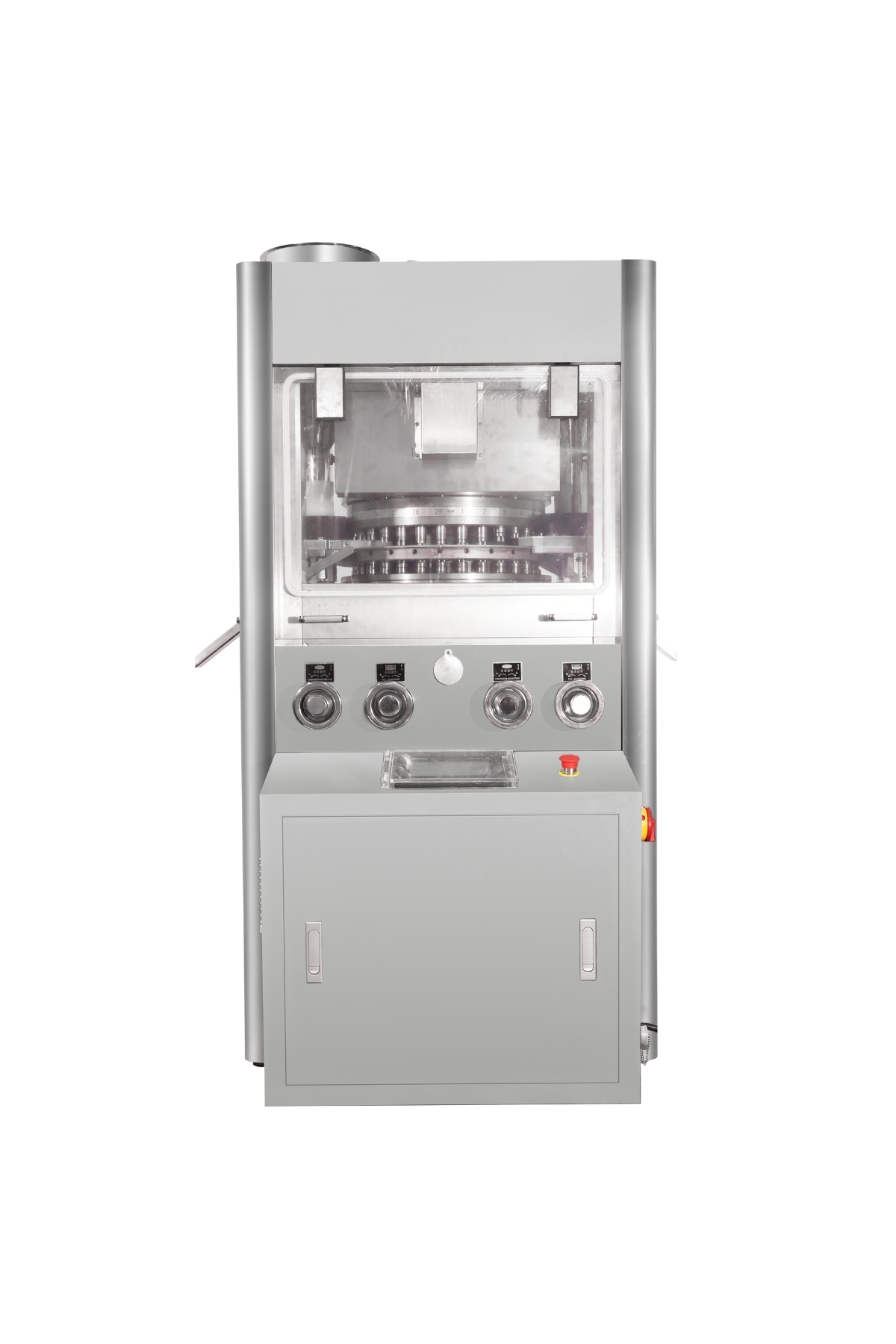

Rotary Tablet Press is a tablet pressing machine with automatic rotation and continuous tablet pressing. It can press all kinds of granular raw materials into tablets, but not suitable for pressing semi-solid, moist powder or non-granular superfine powder. It is mainly used in pharmaceutical, chemical, ceramic, food, electronic, plastic and powder metallurgy industries.
Specifications
| Model |
ZPW-15D |
ZPW-17D |
ZPW-19D |
| Punch quantity (set) |
15 |
17 |
19 |
| Max. tablet pressure (kN) |
60 |
60 |
60 |
| Max. tablet diameter (mm) |
22 |
20 |
13 |
| Max. tablet thickness (mm) |
6 |
6 |
6 |
| Max. filling depth (mm) |
15 |
15 |
15 |
| Max. production capacity (pc/h) |
35,000 |
40000 |
42000 |
| Depth of middle punch (mm) |
22 |
22 |
22 |
| Diameter of middle punch (mm) |
34 |
30 |
26 |
| Diameter of upper and lower punch (mm) |
26 |
22 |
22 |
| Length of upper punch (mm) |
115 |
115 |
115 |
| Length of lower punch (mm) |
115 |
115 |
115 |
| Machine’s coverage area (mm) |
615*890 |
615*890 |
615*890 |
| Machine height (mm) |
1,415 |
1,415 |
1,415 |
| Machine weight (kg) |
1,000 |
1,000 |
1,000 |
Remarks
- The upper and lower pressing wheels adopt the rolling friction, which helps reduce the working resistance and the power loss.
- The adjustment and control mechanisms of filling amount, tablet thickness and rotation speed are all under centralized control, which makes operation easy.
- This machine adopts enclosed oil-immersed worm gear drive to reduce power loss and prolong the service life of worm gear.
- The peripheral cover is a fully-enclosed structure and the sealed pressing chamber and driving mechanism are completely separated, which can prevent dust from flying and avoid cross contamination of oil.
- This machine is equipped with an independent vacuum cleaner, whose high efficiency in dust collection ensures the normal operation of the machine.
